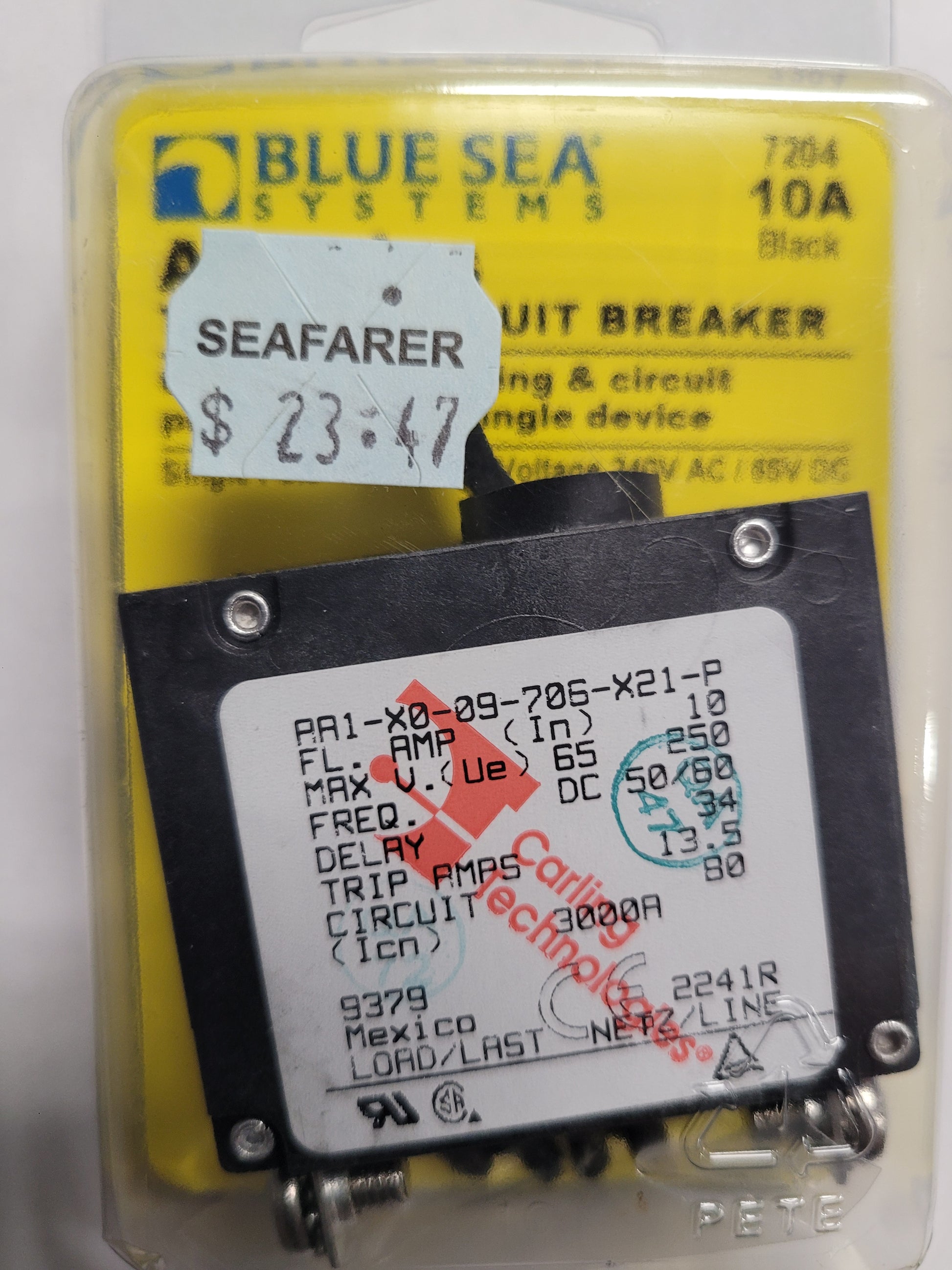

A-Series Black Toggle Circuit Breaker - Single Pole 10A
A-Series Black Toggle Circuit Breaker - Single Pole 10A
MPN:7204
Regular price
$23.47 USD
Regular price
Sale price
$23.47 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

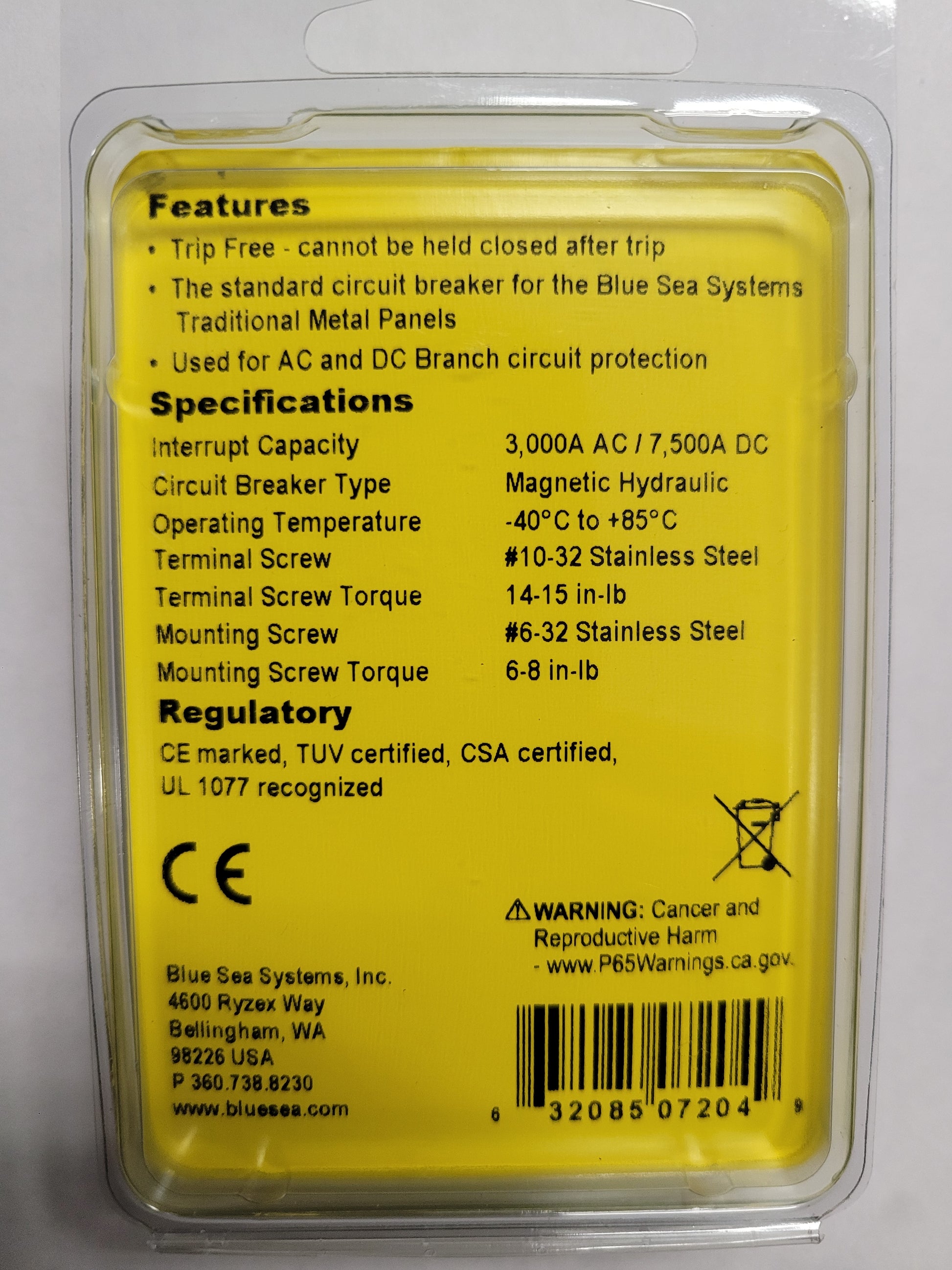

- Meets American Boat and Yacht Council (ABYC) standards
- The industry standard circuit breaker for Blue Sea Systems" electrical panels
- Combines switching and circuit protection into a single device
- "Trip Free" design cannot be held "ON" during fault current condition
Amperage 10A AC
10A DC
Color Black
Actuator Style
Toggle
Poles 1
Maximum Voltage 240V AC
65V DC
Circuit Breaker Type Magnetic Hydraulic - trip free
Interrupt Capacity
3000A @ 120V AC
1500A @ 240V AC [TUV]
3000A @ 240V AC [UL 1077]
7500A @ 65V DC
Minimum Operating Temperature -40° C
Maximum Operating Temperature 85° C
Mounting Screw #6-32 Stainless Steel
Mounting Screw Torque 6 in-lb (0.68 Nm)
Screw Terminal Torque 14 in-lb (1.58 Nm)
Switching Cycles 10000
Terminal Screws #10-32 Stainless Steel
