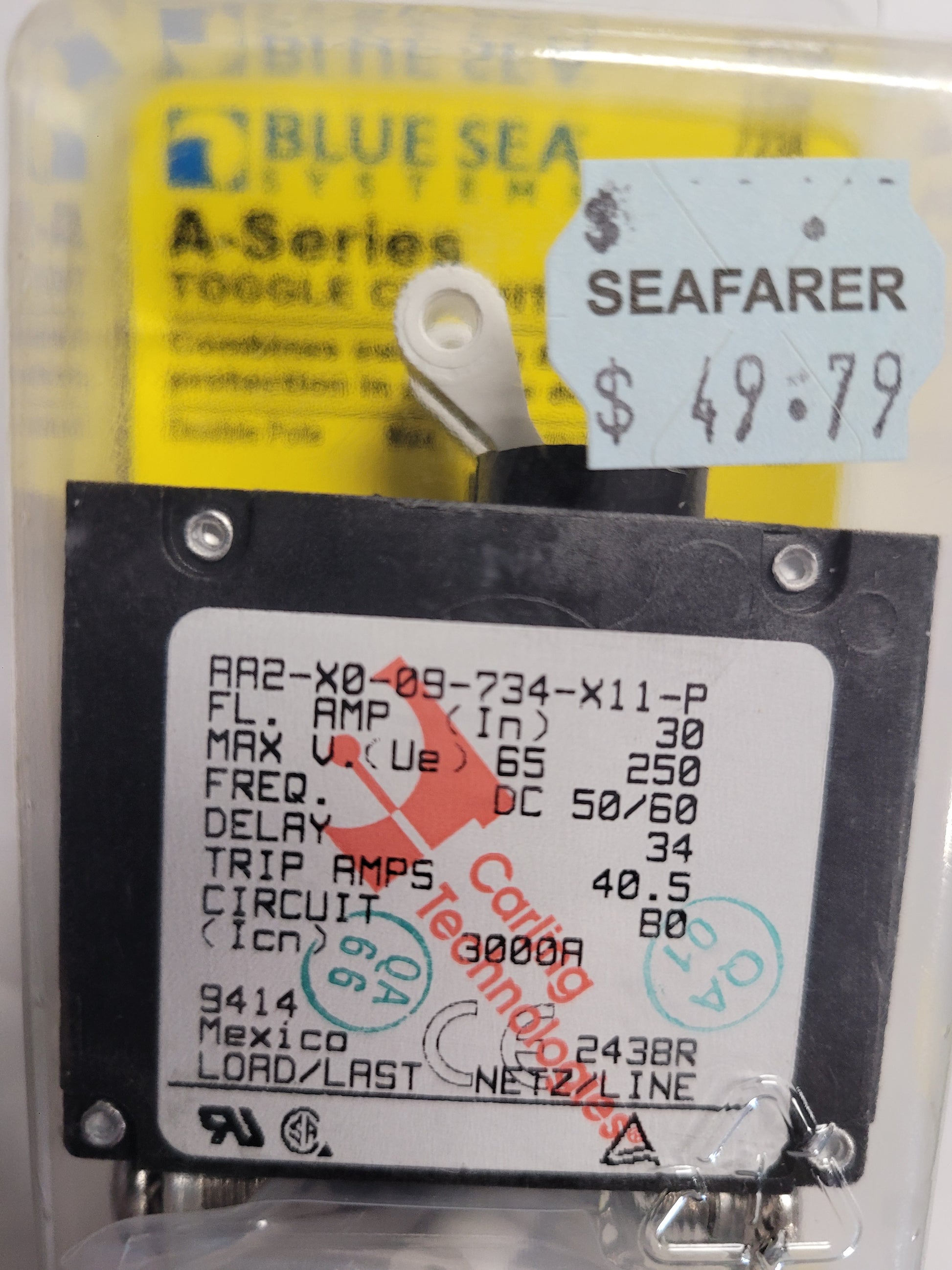

30 Amp Blue Sea Systems A-Series DC Double Pole Toggle Circuit Breaker

Double pole, magnetic-hydraulic, trip free circuit breakers. Combines switching and circuit protection into a single device. Allows for the neutral circuit on one pole and hot circuit on other pole. Both poles will trip if either pole trips. Rated for 250 Volts AC and 65 Volts DC. Includes mounting screws.

• Meets American Boat and Yacht Council (ABYC) standards
• The industry standard circuit breaker for Blue Sea Systems' electrical panels
• Combines switching and circuit protection into a single device
• "Trip Free" design cannot be held "ON" during fault current condition

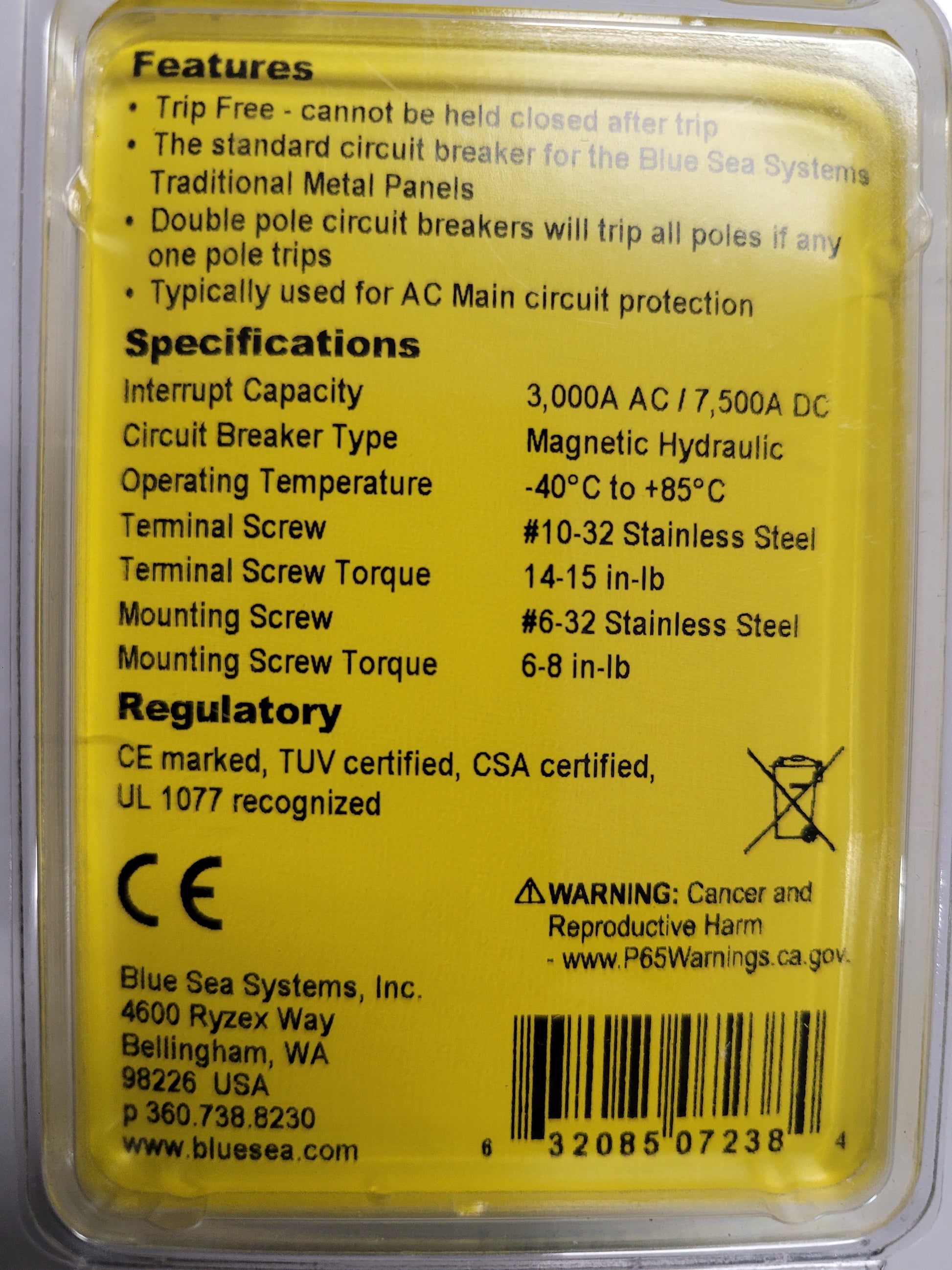

  Amperage	30A AC 30A DC
  Color	White
  Actuator Style	Toggle
  Poles	2
  Maximum Voltage	120V AC 240V AC 65V DC
  Circuit Breaker Type	Magnetic Hydraulic - trip free
  Interrupt Capacity	3000A @ 120V AC 3000A @ 240V AC 1500A @ 240V AC [TUV] 3000A @ 240V AC [UL 1077] 7500A @ 65V DC
  Minimum Operating Temperature	-40° C
  Maximum Operating Temperature	85° C
  Mounting Screw	#6-32 Stainless Steel
  Mounting Screw Torque	6 in-lb (0.68 Nm)
  Screw Terminal Torque	14 in-lb (1.58 Nm)
  Switching Cycles	10000
  Terminal Screws	#10-32 Stainless Steel
