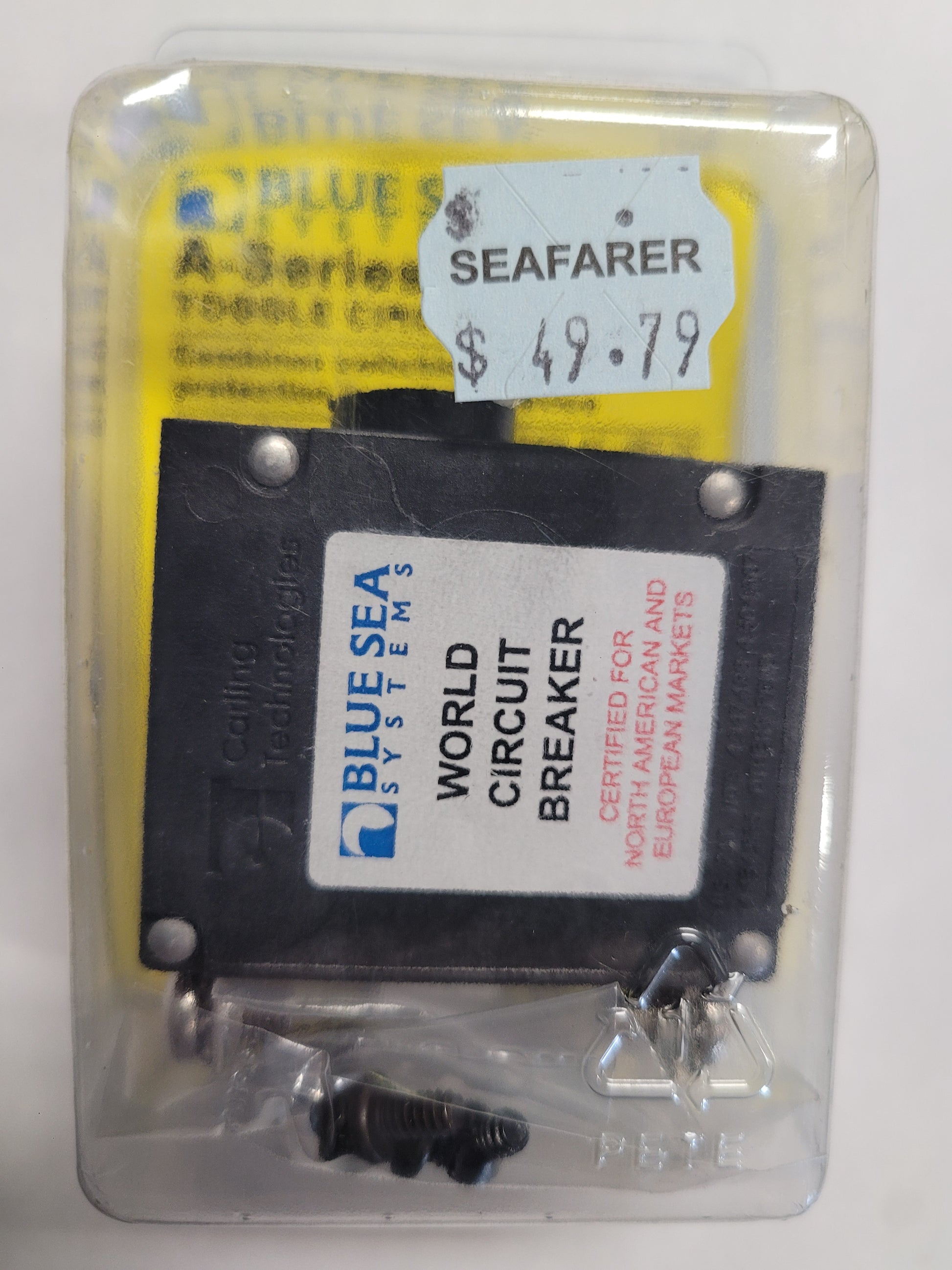

50 Amp Blue Sea Systems A-Series DC Double Pole Toggle Circuit Breaker

Double pole, magnetic-hydraulic, trip free circuit breakers. Combines switching and circuit protection into a single device. Allows for the neutral circuit on one pole and hot circuit on other pole. Both poles will trip if either pole trips. Rated for 250 Volts AC and 65 Volts DC. Includes mounting screws.

• Meets American Boat and Yacht Council (ABYC) standards
• The industry standard circuit breaker for Blue Sea Systems' electrical panels
• Combines switching and circuit protection into a single device
• "Trip Free" design cannot be held "ON" during fault current condition

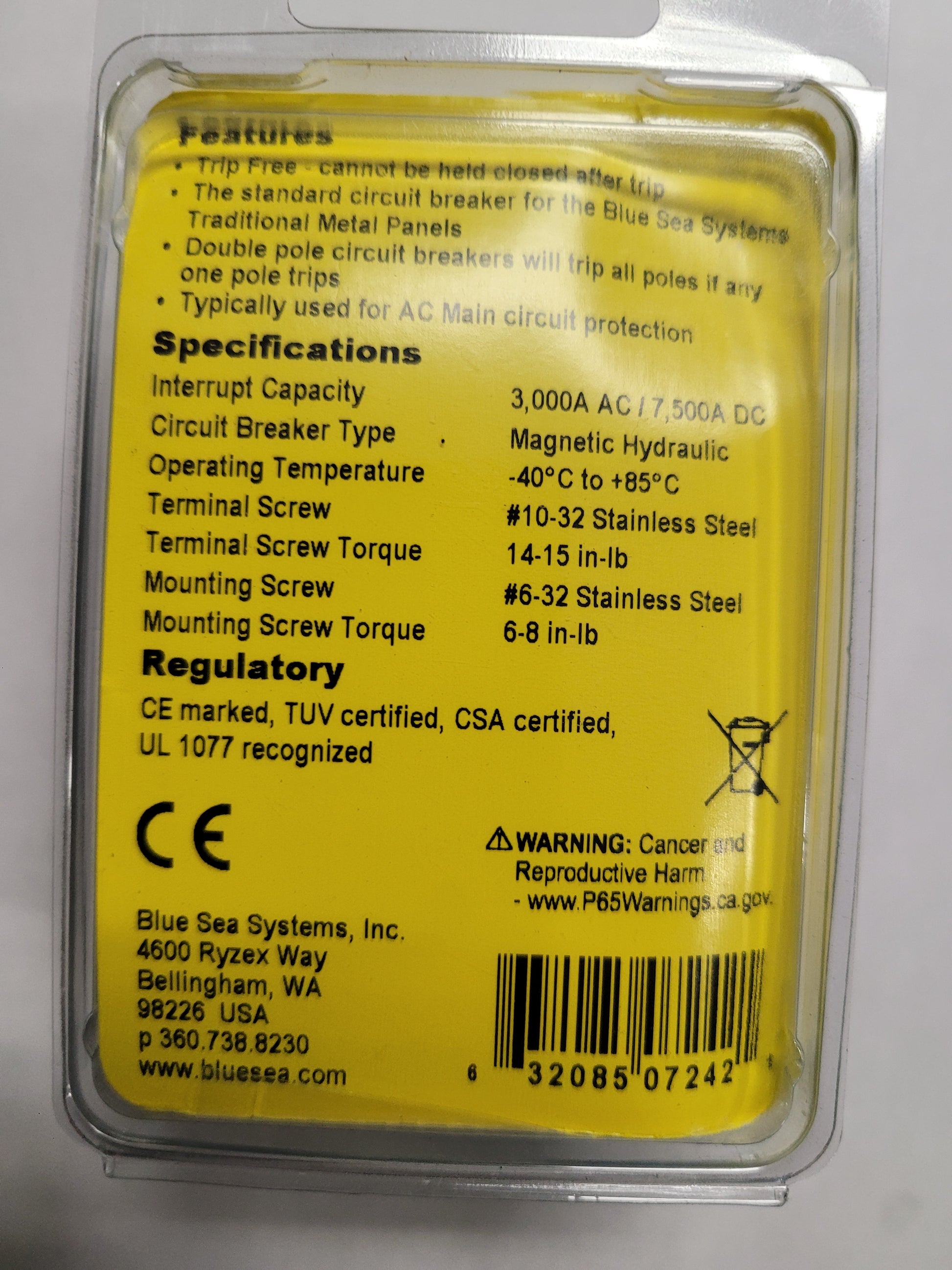

Amperage	50A AC 50A DC
Color	White
Actuator Style	Toggle
Poles	2
Maximum Voltage	120V AC 240V AC 65V DC
Circuit Breaker Type	Magnetic Hydraulic - trip free
Interrupt Capacity	3000A @ 120V AC 3000A @ 240V AC 1500A @ 240V AC [TUV] 3000A @ 240V AC [UL 1077] 7500A @ 65V DC
Minimum Operating Temperature	-40° C
Maximum Operating Temperature	85° C
Mounting Screw	#6-32 Stainless Steel
Mounting Screw Torque	6 in-lb (0.68 Nm)
Screw Terminal Torque	14 in-lb (1.58 Nm)
Switching Cycles	10000
Terminal Screws	#10-32 Stainless Steel
