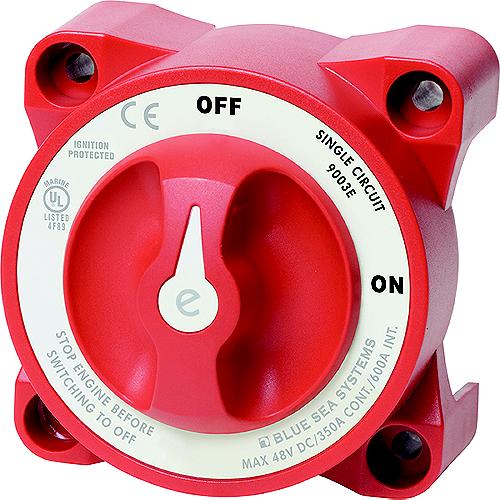

Blue Sea Systems 9003e e-Series On-Off Battery Switch
Blue Sea Systems 9003e e-Series On-Off Battery Switch
MPN:9003E
Regular price
$59.99 USD
Regular price
$64.99 USD
Sale price
$59.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Switch Type
|
Single Circuit ON-OFF |
| Color | Red |
| Switch Positions | 2 |
| Battery Combine | No |
| Alternator Field Disconnect
|
No |
| Maximum Voltage | 48V DC |
| Terminal Stud Torque | 140 in-lb (15.82 Nm) |
| Continuous Rating
|
350A |
| Intermittent Rating
|
600A (5 min) |
| Starting Rating 30 sec
|
1200A |
| Battery Inputs | 1 |
| Cable Clearance For 4/0 AWG Cables | 1.10in (27.94 mm) |
| Cable Size to Meet Ratings | 4/0 AWG (120mm²) |
| Mounting Holes | Accept 1/4" (M6) Screw |
| Stud Material | Tinned Copper |
| Switching Rating | 25A |
| Terminal Stud Size | 3/8" - 16 (M10) |
