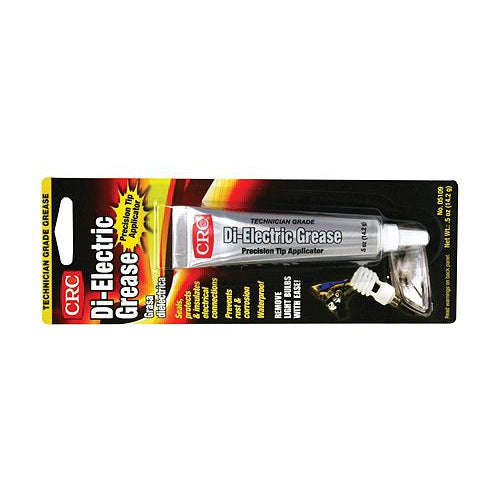

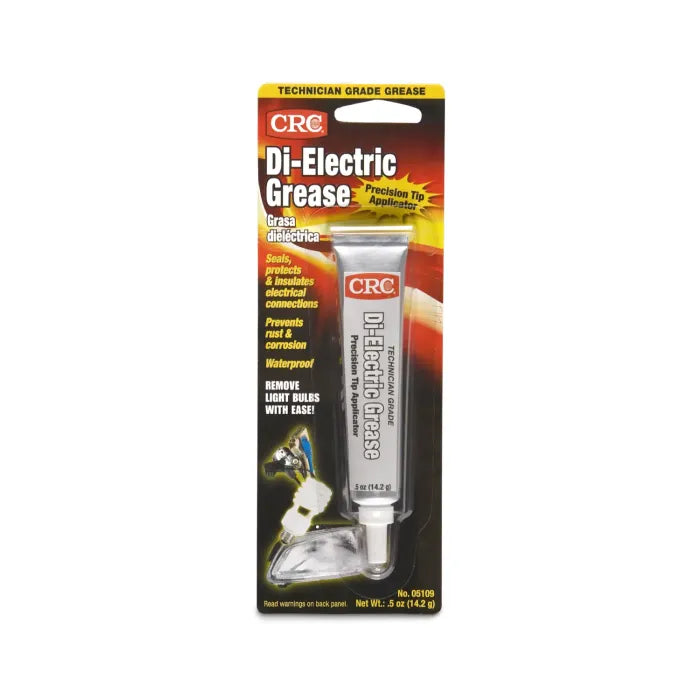

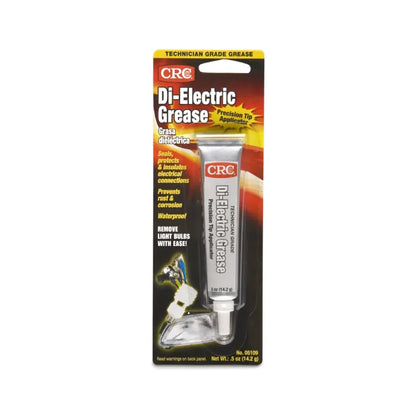

CRC Dielectric grease .5 oz
CRC Dielectric grease .5 oz
MPN:05109
Regular price
$10.79 USD
Regular price
Sale price
$10.79 USD
Shipping calculated at checkout.
Share
Quantity
Couldn't load pickup availability
Features and Benefits
- Waterproofs electrical connections and components to protect against arcing due to moisture and other contaminants
- Improves electrical performance during adverse conditions such as rain, fog, salt spray and temperature extremes
- Precision tip applicator
Applications
- Electrical Connections
- Circuit Breakers
- Contacts
- Spark Plug Boots
- Trailer Connectors
- Hei Distributor
- Battery Terminals
- Contacts
- Lubrication of Plastic
- Rubber Parts & O-Rings
Product Description
A unique, non-curing compound used for sealing, protecting & electrical insulating. Improves electrical performance by reducing arcing, voltage drop & other conditions. Also ideal for lubrication of plastic & rubber.
Specifications
| 0.5 wt oz | 3.3 wt oz | |
|---|---|---|
| Dielectric Strength | 500 Volts/Mil | >450 Volts/Mil |
| Evaporation Rate | Slow | N/A |
| Film Type | Grease | Non-Curing Silicone Paste |
| Flammability Class - CPSC | None | None |
| Flash point (C) | 299°C | >300°C |
| Flash point (F) | 570°F | >572°F |
| Net Fill | 0.5 Wt Oz | 3.3 Wt Oz |
| Plastic Safe | Yes | Safe on Most Plastics (Test small area) |
| Appearance | Translucent White | Opaque White Gel |
| Brand | CRC | CRC |
| Case# | 1003726 | 1003735 |
| Cases Per Pallet | 370 | 120 |
| DOT Proper Shipping Name | Not Regulated | Aerosols, Non-Flammable, Limited Quantity |
| Generic Description | Dielectric Grease | Dielectric Grease |
| I 2 of 5 Code | N/A | 60078254051132 |
| Product Lifecycle Status | ACTIVE | ACTIVE |
| Item Number | 05109 | 05113 |
| Propellant | None | Nitrogen |
| Removal (How To) | Remove with a degreaser. | Remove with petroleum distillates and chlorinated solvents. |
| Unit Dimensions | 7.88H x 2.75W x 1D in | 8.75H x 2.25W x 2.25D in |
| Unit Package Description | 0.5 Ounce Tube | 6 Ounce Pressurized Can |
| Units per Case | 12 | 12 |
| UPC Code | 078254051093 | N/A |
| VOC Category | Not Regulated | Not Regulated |
| VOC g/L (Consumer Product def) | 0 | <0.01 |
| VOC g/L (Federal) | N/A | <15.5 |
| VOC lbs/gal (Consumer Prod def) | 0 | <0.1 |
| VOC Lbs./Gal. (Federal) | N/A | <0.13 |
| VOC % (Consumer Product def) | 0 | <1 |
| VOC % (Federal) | N/A | <1 |
| Working Temp (C) | 298.89°C | -56.7 to 204.4°C |
| Working Temp (F) | 570°F | -70 to 400°F |
