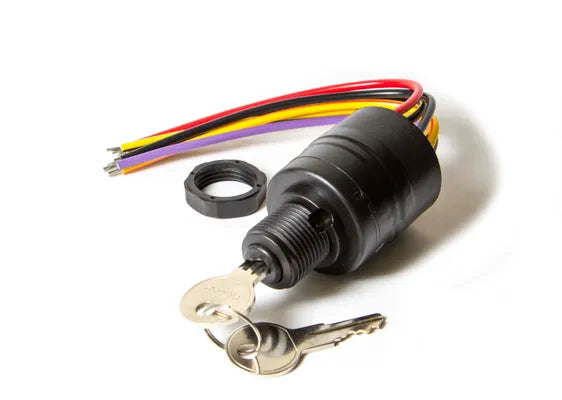

HD Ignition Switch

Ignition Switch - 3 Position Magneto

Back Up Nut: Not Required

Face Nut: Hex Black Plastic

Hole Size: 7/8"

Length: Short: 5/8" maximum panel thickness

Material: Marine grade glass-filled Polyester

Rated Choke: 7 Amp @ 12v DC

Rated Ignition: 15 Amp @ 12v DC

Rated Solenoid: 30 Amp @ 12v DC

Terminal Type: 6 Color Coded Wire Leads/Potted

Switch Function: Off - Run - Start

Type: 3 Position Magneto

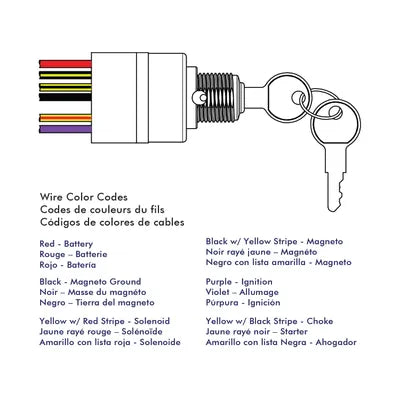

Note: Colors on switch wires match factory color codes

Maximum corrosion protection - eliminates oxidation

Inner seal between cylinder lock and contact plate

Non-conductive housing eliminates potential shorts

Push to Choke

NO RETURNS ON ELECTRICAL ITEMS
