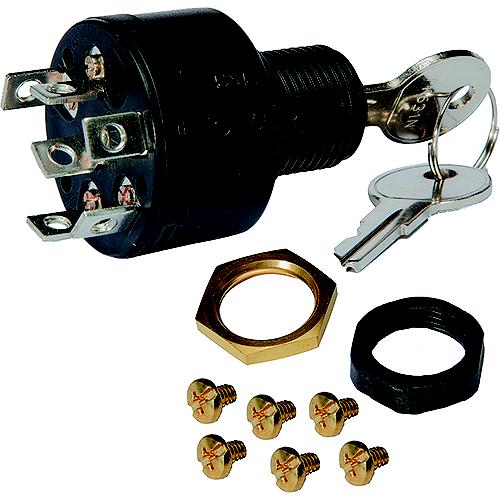

Ing. Switch - 6 Terminal

Key Features:

• Push to choke
• Maximum corrosion protection - eliminates oxidation
• Inner seal between cylinder lock and contact plate
• Non-conductive housing eliminates potential shorts

Additional Information:

• Back Up Nut: Brass
• Face Nut: Hex Black Plastic
• Hole Size: 7/8"
• Length: Short: 5/8" maximum panel thickness
• Material: Marine grade glass-filled Polyester
• Rated Choke: 7 Amp @ 12v DC
• Rated Ignition: 15 Amp @ 12v DC
• Rated Solenoid: 30 Amp @ 12v DC
• Terminal Type: 6 Screw Tab
• Switch Function: Off - Run - Start
• Type: 3 Position Magneto

Mercury Marine

• 87-17393
• 87-88107
• 87-88107A5

Mercury Sport Jet

• 87-88107
• 87-88107A5
