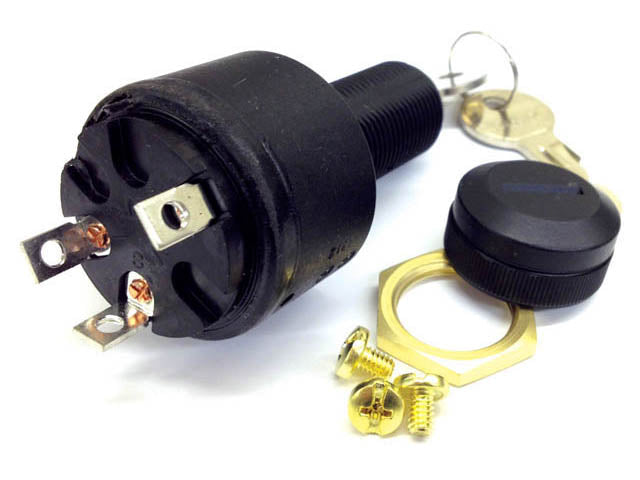

Ignition Switch - 3 Position Conventional

Key Features:

• Maximum corrosion protection - eliminates oxidation
• Inner seal between cylinder lock and contact plate
• Non-conductive housing eliminates potential shorts

Additional Information:

• Back Up Nut: Brass
• Face Nut: Knurled Black Plastic with Rubber Cap
• Hole Size: 7/8"
• Length: Long: 1 1/8" maximum panel thickness
• Material: Marine grade glass-filled Polyester
• Rated Ignition: 15 Amp @ 12v DC
• Rated Solenoid: 30 Amp @ 12v DC
• Terminal Type: 3 Screw Tab
• Switch Function: Off - Run - Start
• Type: 3 Position Conventional
  Polyester Switches: Provide maximum corrosion protection and eliminate potential shorts. Inner seal between cylinder. Does not include push to choke and has a 7/8" Mtg hole. 3 Position(Off - Ignition - Start) lock and contact plate. 30 Amp Solenoid.
