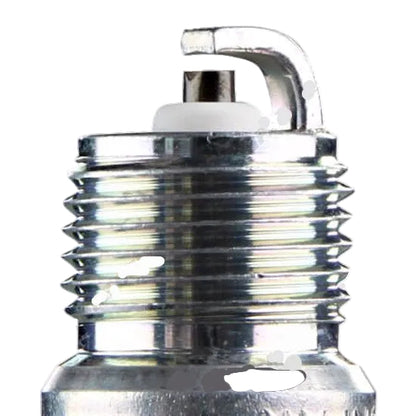

NGK 2771 UR5 V-Power Spark Plug

NGK 2771 UR5 V-Power Spark Plug

• NGK V-Power plugs feature a unique v-cut in the center electrode that directs the spark to the edge of the electrode, helping the spark develop more rapidly, increasing ignitability and reducing quenching.


  • Trivalent metal plating provides superior anti-corrosion and anti-seizing properties

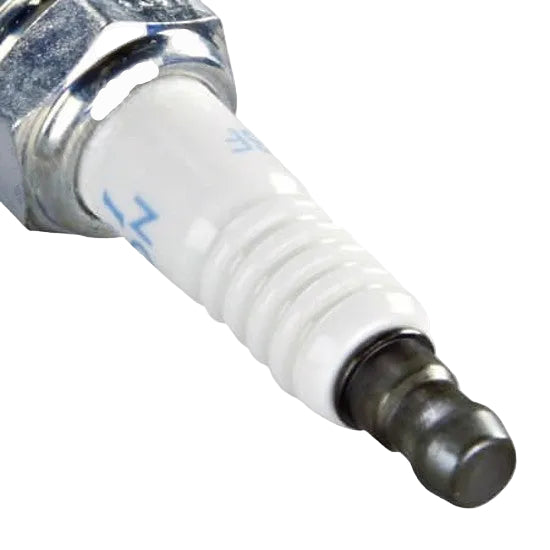

  • Corrugated ribs prevent flashover
  • Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
  • Copper core aids in heat removal
  • Triple seals prevent leakage
• Product Specifications
  • Shell
  • Thread Diameter 14mm
  • Thread Pitch 1.25mm
  • Seat Type Tapered
  • Reach 11.6mm (.460")
  • Hex Size 5/8" (16mm)
  • Terminal Type Solid
  • Overall Height ISO
  • Gap .039" (1.0mm)

  • Center Electrode
  • Material Nickel
  • Type V-Cut
  • Size 2.5mm
  • Projection Projected

  • Ground Electrode
  • Material Nickel
  • Type Standard
  • Quantity 1

  • Specifications
  • Resistor Yes
  • Resistor Value 5k Ohm
  • Heat Range 5
  • Torque Specs: Cast Iron: 10.8-18 lb. ft. Aluminum: 7.2-14.5 lb. ft.
