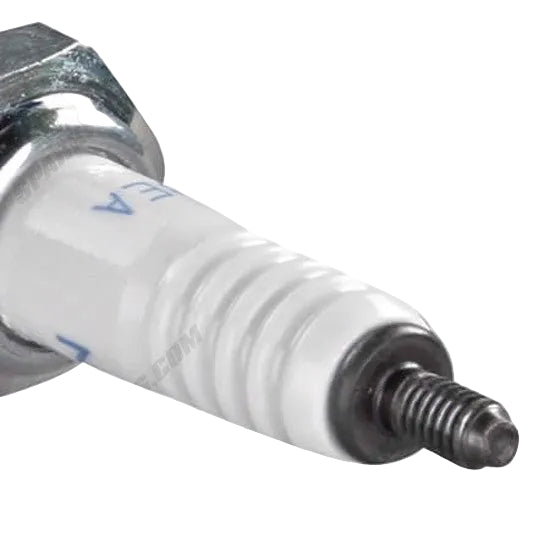

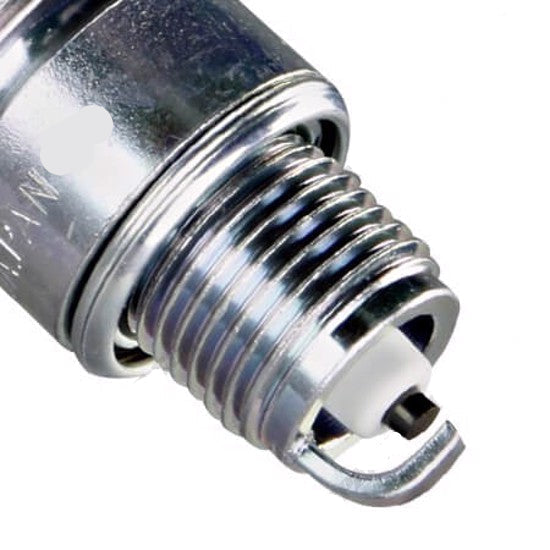

NGK 3810 B8S Nickel Spark Plug

NGK 3810 B8S Nickel Spark Plug

• NGK standard plugs are constructed for longer life and optimum performance.


  • Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
  • Corrugated ribs prevent flashover
  • Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
  • Copper core aids in heat removal
  • Triple seals prevent leakage
• Product Specifications
  • Shell
  • Thread Diameter14mm
  • Thread Pitch1.25mm
  • Seat Type Gasket
  • Reach9.5mm (3/8")
  • Hex Size13/16" (21mm)
  • Terminal Type Removable Nut
  • Overall Height ISO
  • Gap.028" (0.7mm)

  • Center Electrode
  • Material Nickel
  • Type Standard
  • Size2.5mm
  • Projection on-Projected

  • Ground Electrode
  • Material Nickel
  • Type Standard
  • Quantity1

  • Specifications
  • Resistor No
  • Resistor Value1K Ohm
  • Heat Range8
  • Torque Specs Cast Iron: 18-25.3 lb. ft. Aluminum: 18-21.6 lb. ft.
