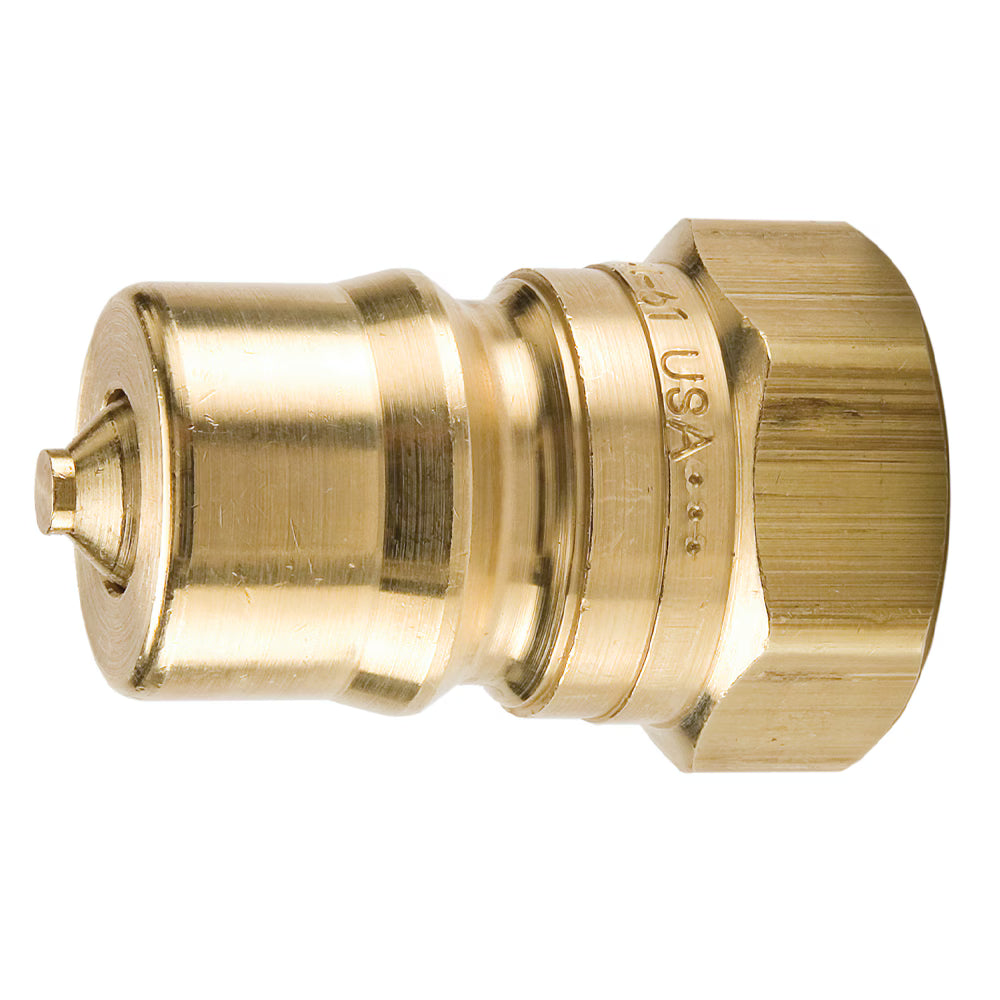

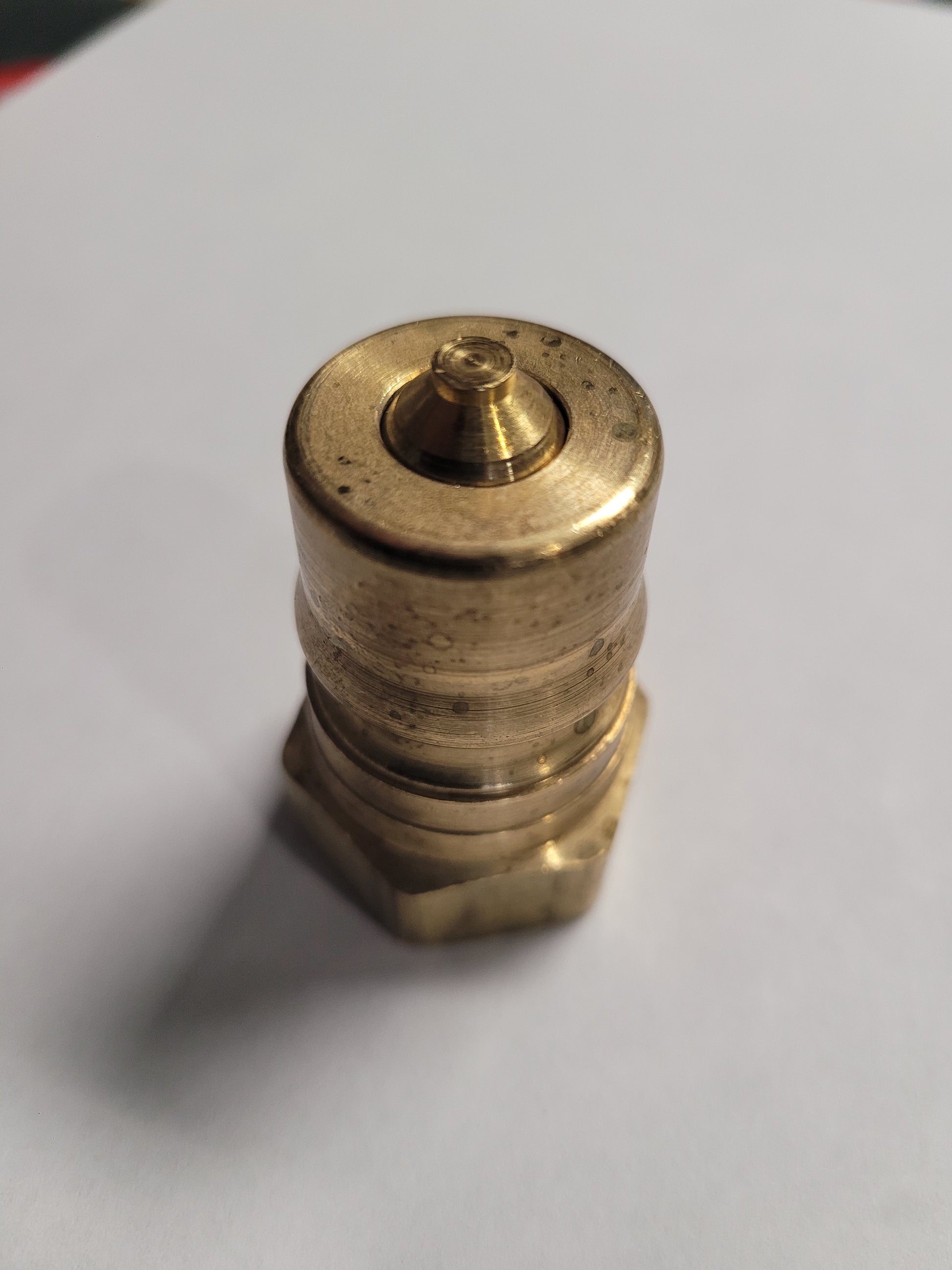

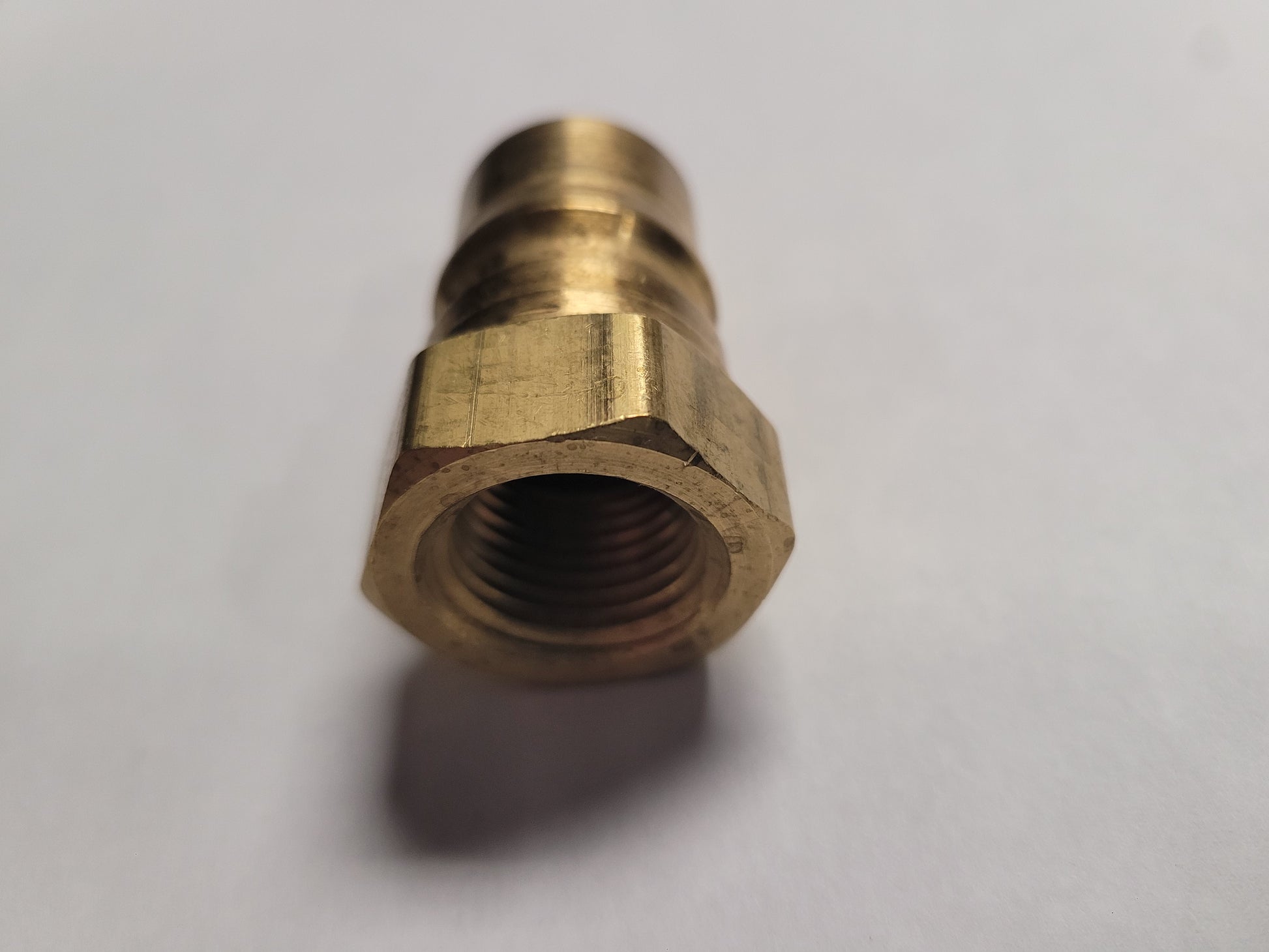

Hydraulic Quick Coupling, 60 Series, Male, Brass, Parker BH4-61
Hydraulic Quick Coupling, 60 Series, Male, Brass, Parker BH4-61
MPN:BH4-61
Regular price
$21.27 USD
Regular price
$46.24 USD
Sale price
$21.27 USD
Shipping calculated at checkout.
Share
Quantity
Couldn't load pickup availability
Hydraulic Quick Coupling, 60 Series, Male, Brass
General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series
Technical Specifications
| Body Material: | Brass |
| Specifications Met: | ISO 7241-1 Series B |
| Coupling Half: | Male Nipple |
| Application: | General Purpose |
| Maximum Operating Temperature: | 250 °F, 121 °C |
| Product Type: | Manual Connect |
| Maximum Operating Pressure: | 3500 |
| Body Size (inch): 60 Series Couplers (hydraulic, fluids, gas, steam) up to 5000 psi, connect with ISO 7241 series B, 60 Series Nipples. Parker's 60 Series have double shut-off poppet valves and are interchangeable with other quick disconnects complying with ISO 7241 series B. These general purpose quick couplings are available in a wide range of sizes and materials to be versatile for use with several fluids, including high temperature steam. Parker's 60 Series is multi-purpose for a variety of applications and pressures up to 5000 psi. Steam version couplers are brass with double interface O-rings and stainless steel locking balls. Seal material is Ethylene Propylene and the 3/8" size has a grip-ring sleeve for easy operation when wearing gloves. Technical Characteristics: • Sizes: 1/8” – 2-1/2” • Materials: Steel, Brass, 303 Stainless Steel, 316 Stainless Steel • Port Ends: Female NPTF, Female ORB, Female BSPP • Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene • Coupler options include: Sleeve Lock, Valve Actuator, Steam compatibility Markets: • Industrial • Construction • Chemical Processing • Commercial Cleaning • Agriculture Features/Benefits: • Globally interchangeable with other manufacturer's couplings complying to ISO 7241 series B • Multi-purpose coupling, widely used in varied applications • Steel couplers have a hardened sleeve for strength and durability • Metal valve stop prevents flow checking to provide steady performance • Steam version couplers have Ethylene Propylene seals to withstand high temperatures and the 3/8" has a grip-ring sleeve for easy operation when wearing gloves • Brass couplers have double O-rings for redundant sealing and stainless steel locking balls for corrosion resistance • 316 Stainless steel couplers have Fluorocarbon seals for chemical compatibility • Optional coupler sleeve lock helps to prevent accidental disconnection Applications: • Industrial hydraulic lines • Food and chemical processing • Water and coolant lines • Thermal Management • High pressure fluid transfer • High temperature fluid transfer • Mobile equipment • Cleaning equipment • Dry cleaning • Steam systems |
1/2 |
| Minimum Operating Temperature: | -40 °C, -40 °F |
| Body Material: | Brass |
| Valve Type: | Poppet |
| Seal Material: | Nitrile |
| Flow Rate: | 45 L/min, 12 gal/min |
| Connection Type: | Female NPTF |
| Hex Size: | 1.12 inch |
| Connection Thread Size (inch): | 1/2 - 14 |
| Vacuum Pressure Rating: | 27.4 inch-Hg, -0.9 bar |
| Valve Material: | Brass |
| Plating Type: | n/a |
