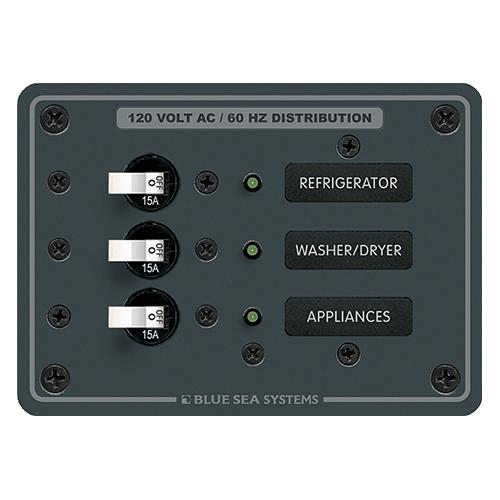

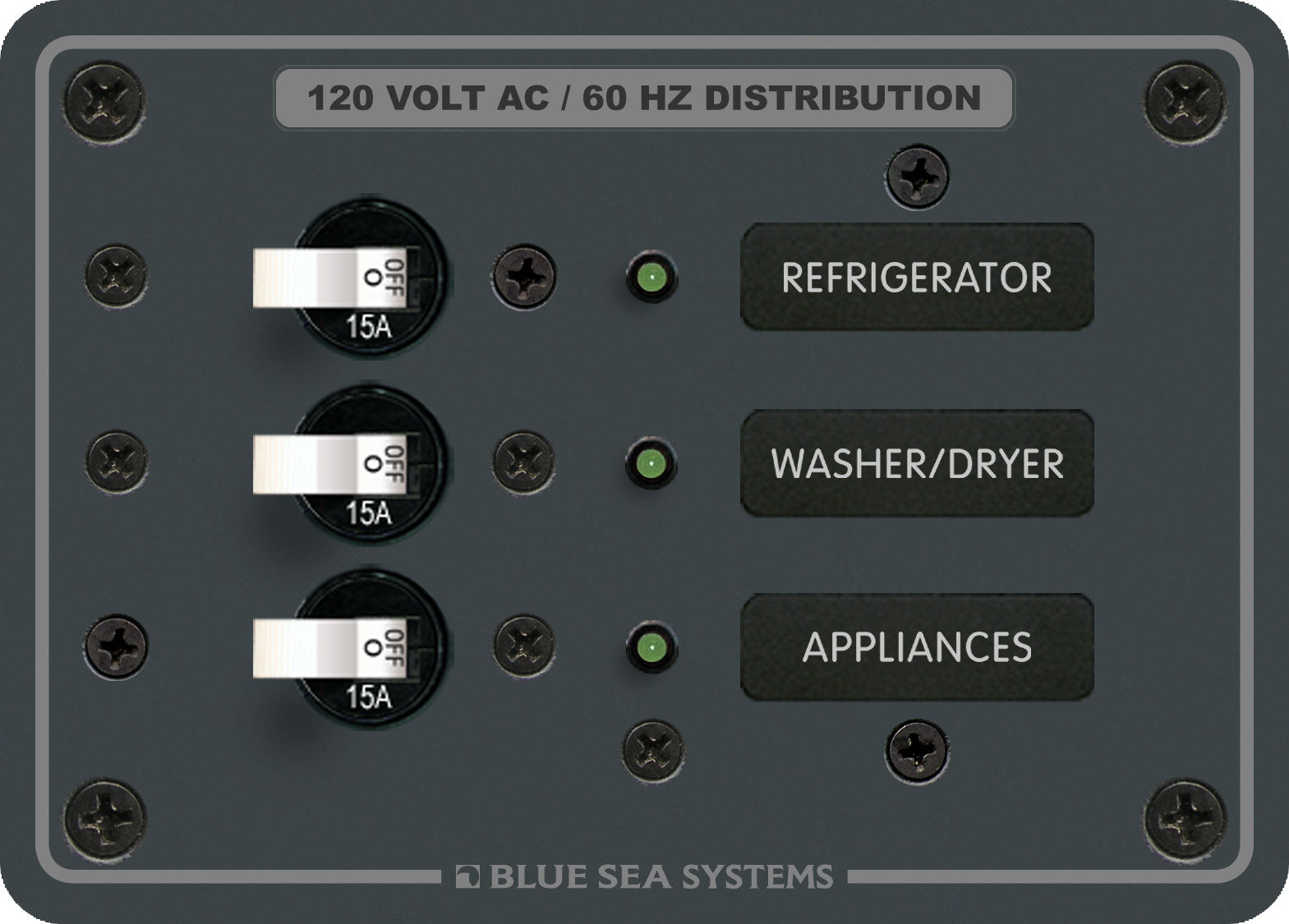

Blue Sea Systems 8058 120V AC 3 Position Circuit Breaker Panel, (NOS) This One Only, CLOSE OUT

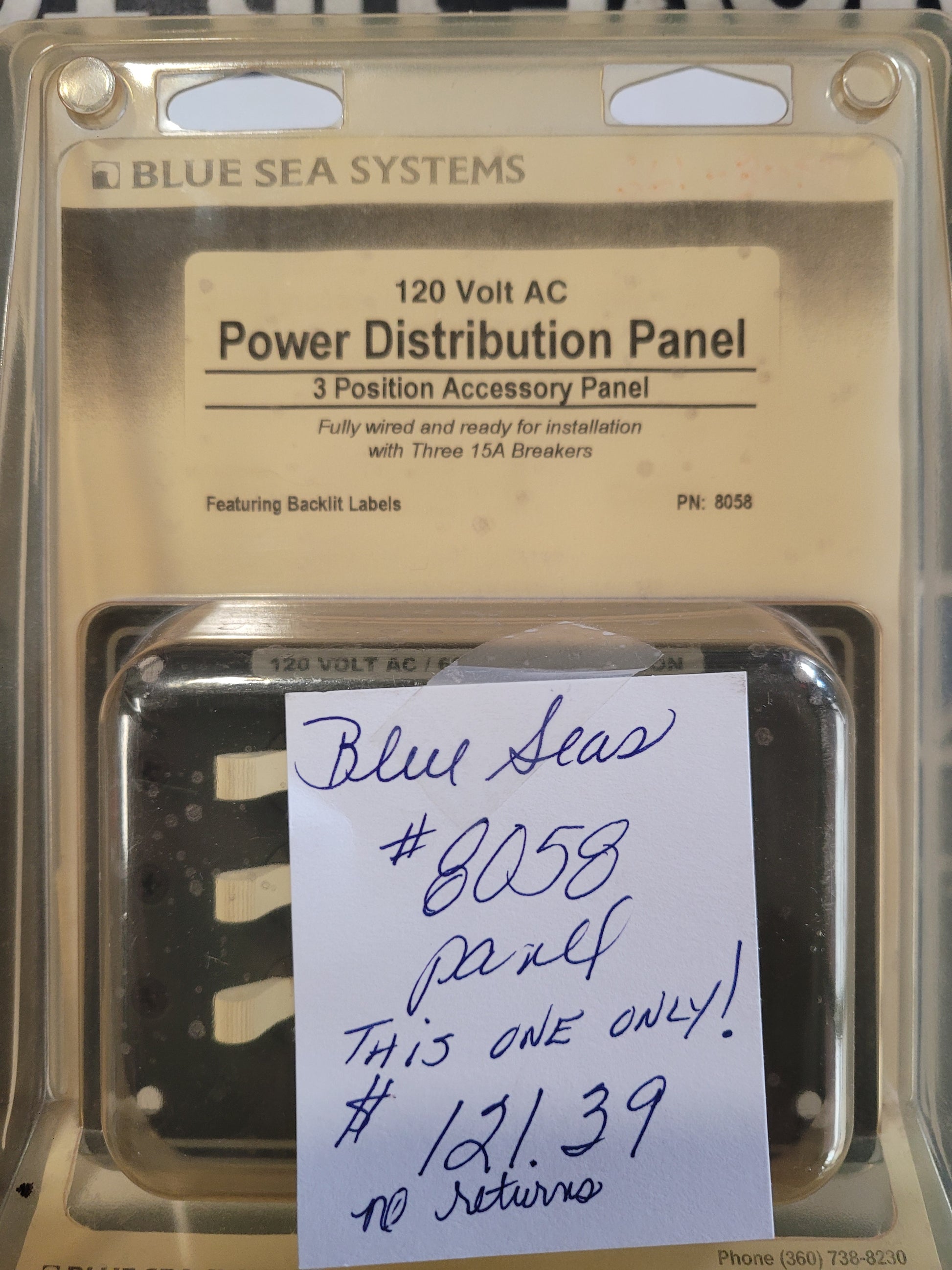

 Faded Packaging, Blue Sea Systems 8058 120V AC 3 Position Circuit Breaker Panel
AC Branch panels distribute current from a high amperage input into lower amperage circuits. Styled to match existing panels, the traditional metal panels are equally suited for use as extensions to existing panels or as full replacements.
All panels are pre-wired and include LEDs in all positions and label backlighting. Marine grade aluminum frame securely holds fixed panel components and is chemically treated to resist corrosion. Includes 8031 label set and 3 15A breakers w/white toggles. Max 100 amps.

• All hot, neutral, and safety ground buses installed, fully pre-wired
• All circuit label positions are backlit on standard panels - No kit required
• "ON" indicating LEDs installed in all circuit posistions
• Maximum panel amperage - 100 Amperes


  Positions	3
  Nominal Voltage	120V AC
  Maximum Amperage	100A
  Height	3.75in (95.25 mm)
  Width	5.25in (133.35 mm)
  Weight	1.14lb (0.52 kg)
  Qty	PN	Product
  3	7210	A-Series White Toggle Circuit Breaker - Single Pole 15A
  1	8031	Basic AC Panel Label Set - 30 Labels [LABEL]
  3	8034	LED - 120V AC Green
