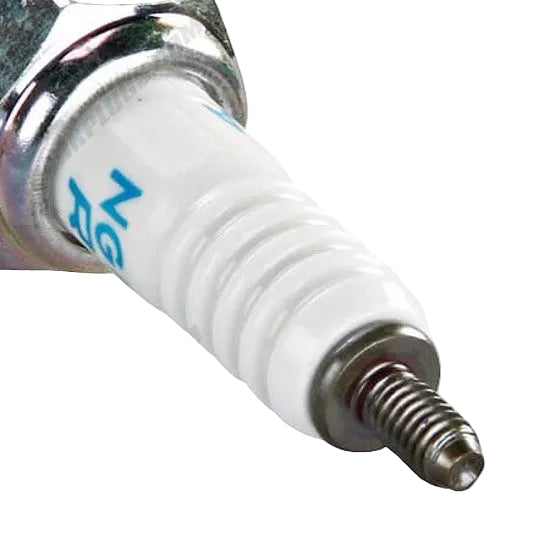

NGK DPR6EB-9 (3108) Spark Plug

NGK standard plugs are constructed for longer life and optimum performance.

• Trivalent metal plating provides superior anti-corrosion and anti-seizing properties

• Corrugated ribs prevent flashover

• Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer

• Copper core aids in heat removal

• Triple seals prevent leakage

• Shell
• Thread Diameter12mm
• Thread Pitch1.25mm
• Seat Type Gasket
• Reach19mm (3/4")
• Hex Size18mm
• Terminal Type Solid
• Overall Height ISO
• Gap.035" (0.9mm)

• Center Electrode
• Material Nickel
• Type Standard
• Size2.5mm
• Projection Projected

• Ground Electrode
• Material Nickel
• Type Standard
• Quantity1

• Specifications
• Resistor Yes
• Resistor Value5k Ohm
• Heat Range6
• Torque Specs: Cast Iron: 10.8-18 lb. ft. Aluminum: 10.8-14.5 lb. ft.
