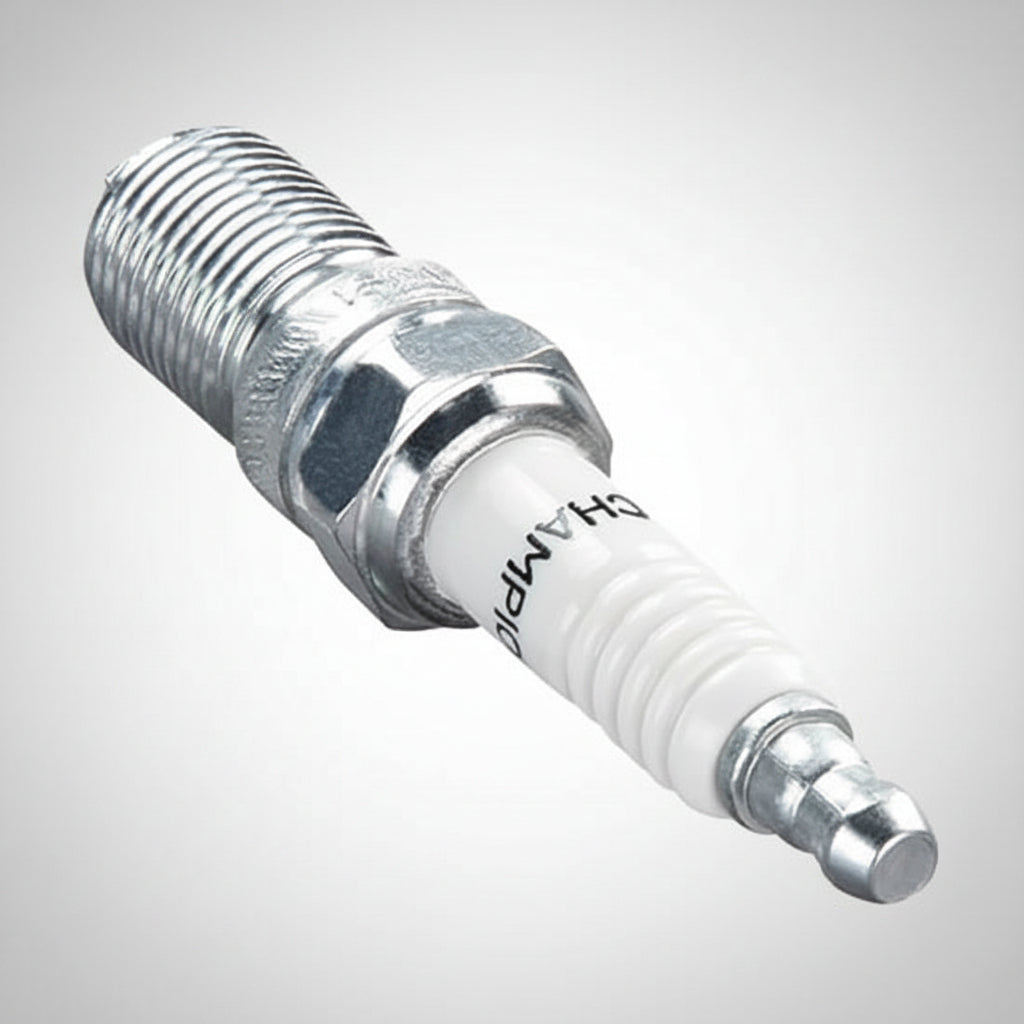

Champion 909 RS17YX Spark Plug

Champion 909 RS17YX Spark Plug

• Conventional spark plug with nickel alloy electrodes. Copper core center electrode allows for increased conductivity and heat control.

• Product Specifications
  • Shell
  • Thread Diameter 14mm
  • Thread Pitch 1.25mm
  • Seat Type Tapered
  • Reach 17.5mm (.689")
  • Hex Size 5/8" (16mm)
  • Terminal Type Solid
  • Gap.024" (0.6mm)

  • Center Electrode
  • Material Nickel
  • Type Fine Wire
  • Size 1.3mm
  • Projection Projected

  • Ground Electrode
  • Material Nickel
  • Type Cut Back
  • Quantity 1

  • Specifications
  • Resistor Yes
  • Resistor Type SAC9
  • Heat Range 17
  • Torque Specs: Cast Iron: 7-15 lb. ft. Aluminum: 7-15 lb. ft.
