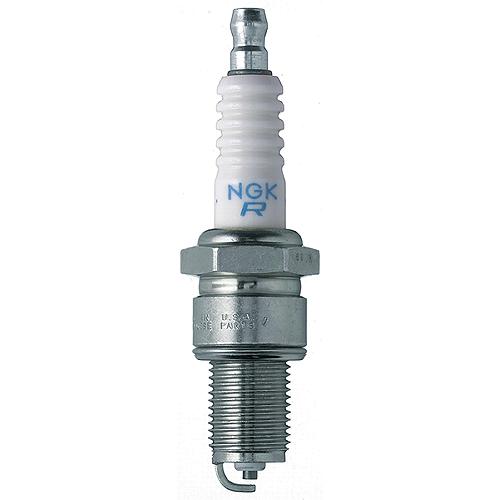

NGK 5531 DPR6EA-9 Nickel Spark Plug

NGK 5531 DPR6EA-9 Nickel Spark Plug

• NGK standard plugs are constructed for longer life and optimum performance.


  • Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
  • Corrugated ribs prevent flashover
  • Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
  • Copper core aids in heat removal
  • Triple seals prevent leakage
• Product Specifications
  • Shell
  • Thread Diameter12mm
  • Thread Pitch1.25mm
  • Seat Type Gasket
  • Reach19mm (3/4")
  • Hex Size18mm
  • Terminal Type Threaded Stud
  • Overall Height ISO
  • Gap.035" (0.9mm)

  • Center Electrode
  • Material Nickel
  • Type Standard
  • Size2.5mm
  • Projection Projected

  • Ground Electrode
  • Material Nickel
  • Type Standard
  • Quantity1

  • Specifications
  • Resistor Yes
  • Resistor Value5k Ohm
  • Heat Range6
  • Torque Specs: Cast Iron: 10.8-18 lb. ft. Aluminum: 10.8-14.5 lb. ft.
