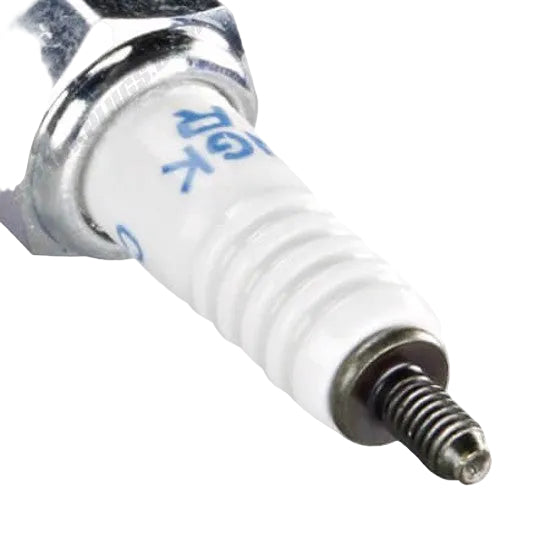

NGK standard plugs are constructed for longer life and optimum performance. Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
Corrugated ribs prevent flashover
Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
Copper core aids in heat removal
Triple seals prevent leakage
Product Specifications
- Shell
-
Thread Diameter12mm
-
Thread Pitch1.25mm
- Seat Type Gasket
-
Reach19mm (3/4")
-
Hex Size18mm
-
Terminal Type Removable Nut
-
Overall Height ISO
-
Gap.028" (0.7mm)
- Center Electrode
-
Material Nickel
- Type Standard
-
Size2.5mm
- Projection on-Projected
- Ground Electrode
- Material Nickel
- Type Standard
-
Quantity1
- Specifications
- Resistor Yes
-
Resistor Value5k Ohm
-
Heat Range7
-
Torque Specs: Cast Iron: 10.8-18 lb. ft. Aluminum: 10.8-14.5 lb. ft.
